Centrifugal oil filter

流體碟式分離機主要用于液-液、液-固或液-液-固三相分離，廣泛應用于乳制品、植物油、化工、生物醫藥等領域。

典型應用場景

乳制品行業：牛奶脫脂（分離稀奶油與脫脂乳）、乳清蛋白濃縮、鮮牛乳澄清等。 ?

植物油行業：毛油脫膠、磷脂分離（殘磷量≤10ppm）、棕櫚油凈化等。 ?

飲料行業：果汁澄清（濁度≤20NTU）、啤酒凈化、植物蛋白提取等。 ?

化工與環保：含油廢水處理（出水含油≤15mg/L）、鈦白粉漿料分級、高嶺土精制等。 ?

分離原理

通過高速旋轉的轉鼓產生離心力，使密度差異的液相分層（如稀奶油向中心移動，脫脂乳向外圍移動），固相顆粒沉積于轉鼓內壁定期排出。 ?

特殊功能

噴嘴排渣：連續操作，沉渣濃度可提高5-20倍，處理量達300m3/h 。 ?

活門排渣：間歇排渣，無需停機 。 ?

Product Details

Equipment technical parameters (main distinguishing parameter identification background color)

Number	project	Jiangxi Meifei Environmental Protection Technology Co., Ltd

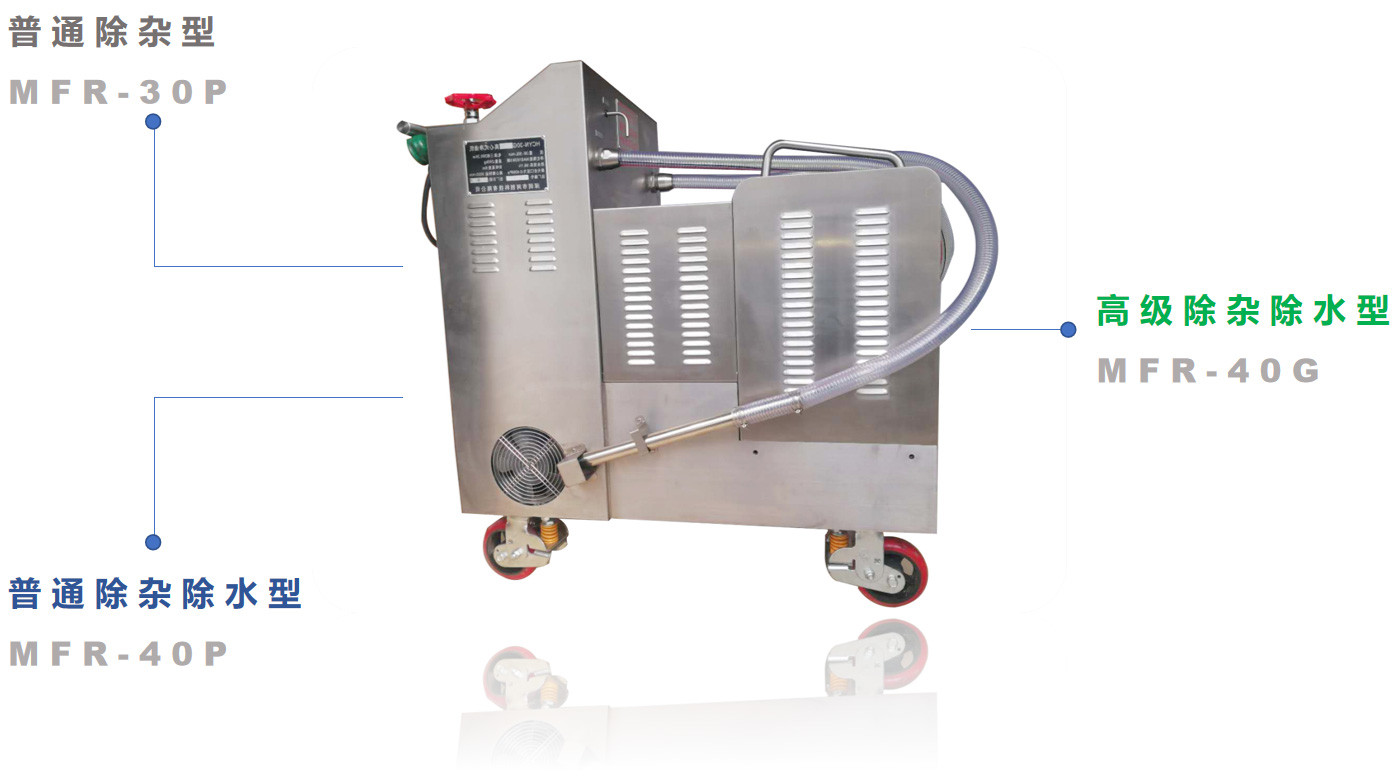

1	Product model:	MFR-30P	MFR-40P	MFR-40G
2	Product Name/Brand:	Fluid disc separator/MFR
3	Size:	1015mm * 622mm * 943mm
4	Weight:	≤ 320KG
5	Working power supply:	Three phase four wire system 380V
6	Frequency/rated power:	50HZ/3KW
7	Usage environment:	10-70	-10-70 ℃	-20-80 ℃
8	Environmental humidity:		≤ 95%
9	Centrifugal cylinder speed:	8000 r/min	8000 r/min	10000 r/min
10	Dehydration efficiency:	0	96.10%	99.80%
11	Dehydration method:	Micro drainage of the sewage box	Automatic continuous drainage	High speed automatic continuous drainage
12	NAS level:	6-9 levels	Level 5-8	4-7 levels
13	Imported oil pressure:	Vacuum degree ≤ 0.05Mpa
14	Maximum output pressure:	≤ 0.40Mpa
15	Minimum working pressure:	≥ 0.15Mpa
16	Pollutant capacity:	3Kg
17	Self suction height:	≤ 8m
18	Traffic:	30-45L/min	36-50L/min	36-60L/min (adjustable)
19	Oil viscosity range:	32-320 # oil products are applicable
20	Moisture content:	/	≤ 500PPM	≤ 200PPM
21	Gas content:	No free gas
22	Applicable fuel tank volume	Drainage and exhaust oil tank fully applicable
23	Protection system:	Phase sequence, pressure relief, vibration protection	Phase sequence, pressure relief, vibration protection	Soft start protection, phase sequence, pressure relief, vibration protection
24	Filter consumption:	nothing
25	Sheet metal material:	304 stainless steel
26	Upper seal:	High purity silicon carbide material	High purity silicon carbide material	Hard alloy YN8
27	Separation structure:	Double helix (including disc)
28	Material of drain valve:	/	Imported alloy aluminum	Imported alloy aluminum
29	Material of separation cylinder:		Imported alloy aluminum	Imported alloy aluminum
30	Lower seal:	High purity silicon carbide material	Hard alloy YN8	Hard alloy YN8
31	Main component accuracy:	≤ 0.01mm
32	Dynamic balance treatment	have
33	electrical machinery	ABB imported motor
34	Liquid level control switch	Imported Jiemai
35	Pressure switch	Imported Jiemai
36	Electrical part	Schneider/Chint/Otonix

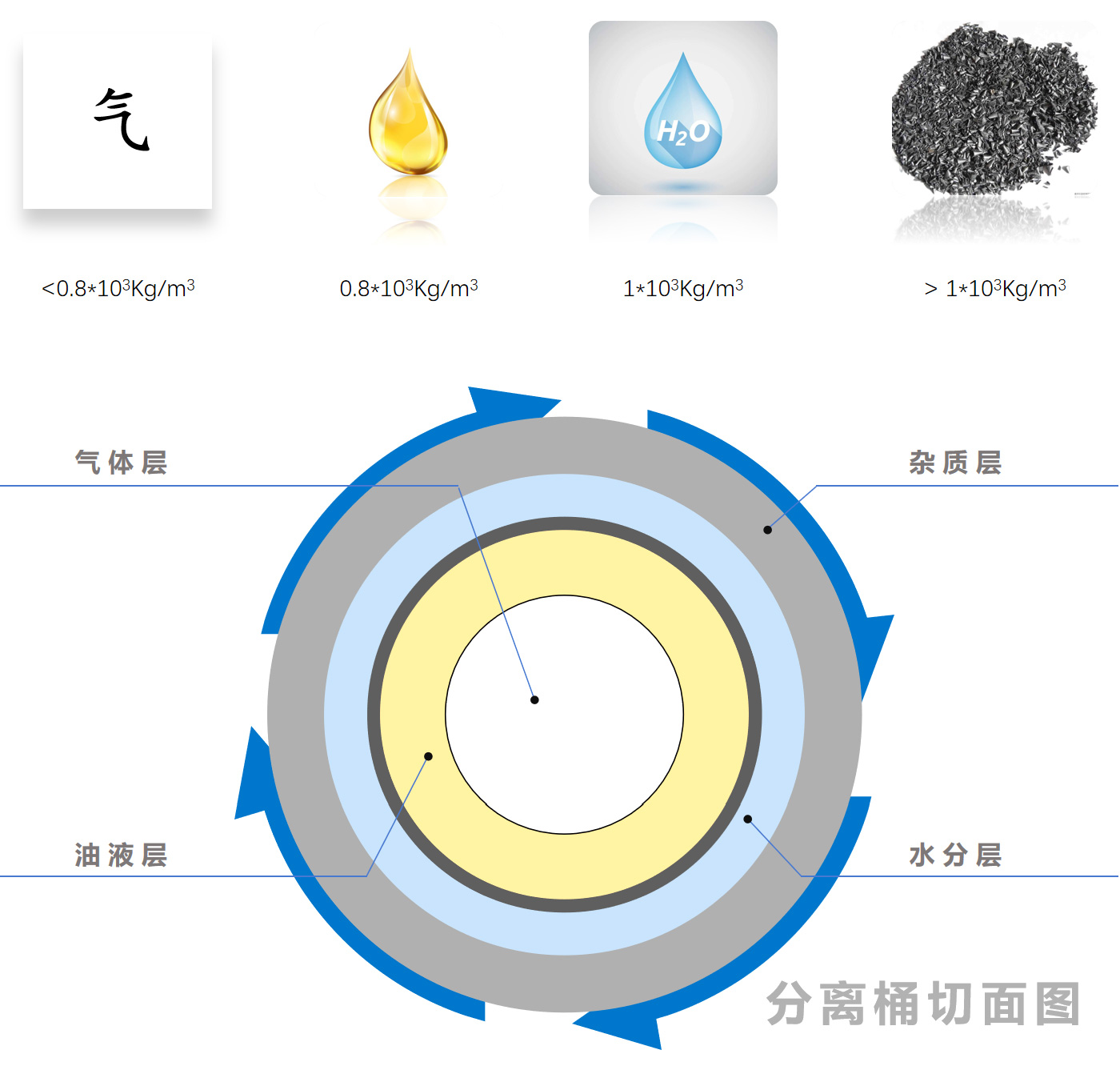

Basic principle of centrifugal oil filter
Separation through different densities of gas, oil, water, and impurities 離心式濾油機3.jpg

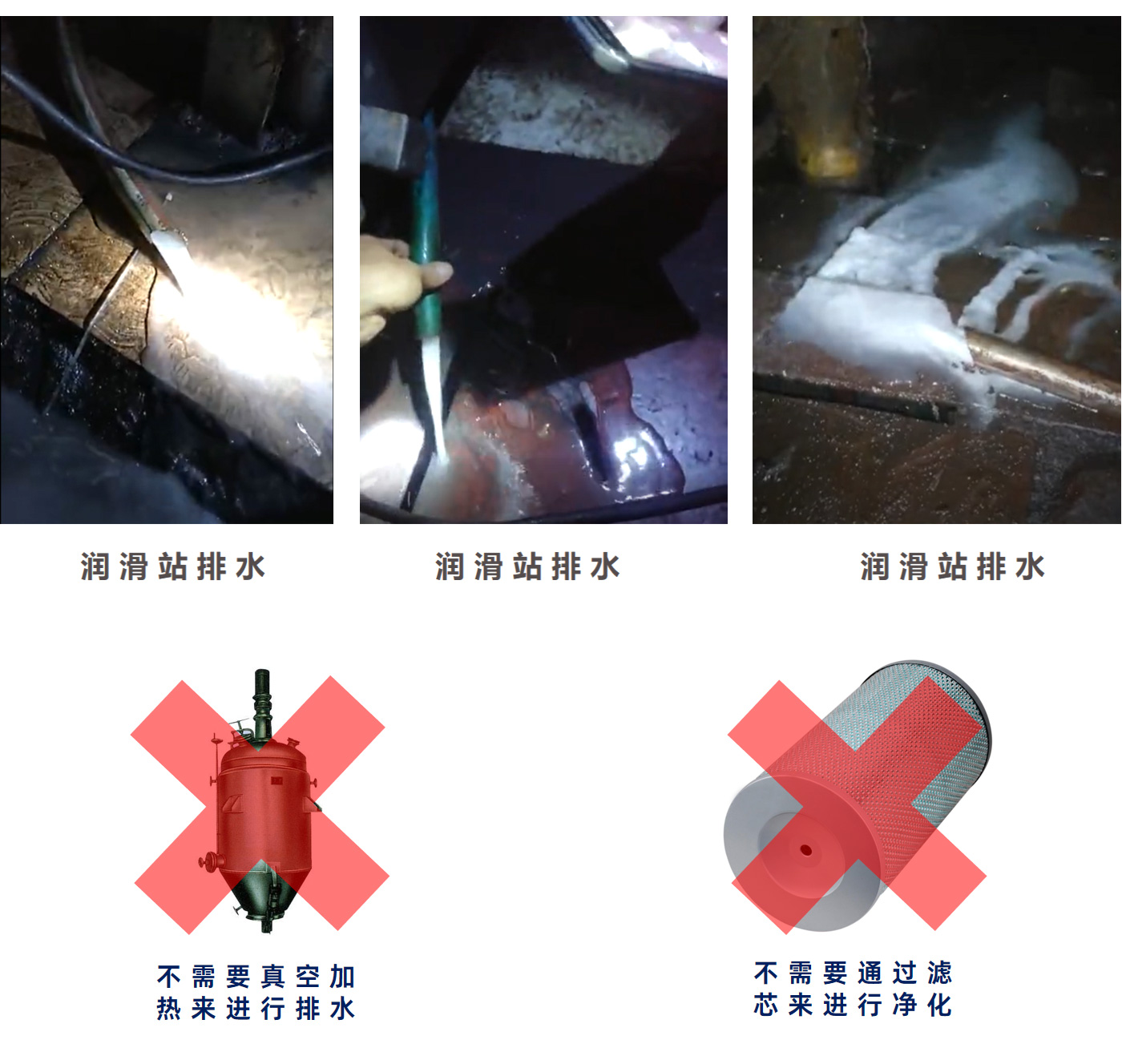

Automatic continuous drainage function
